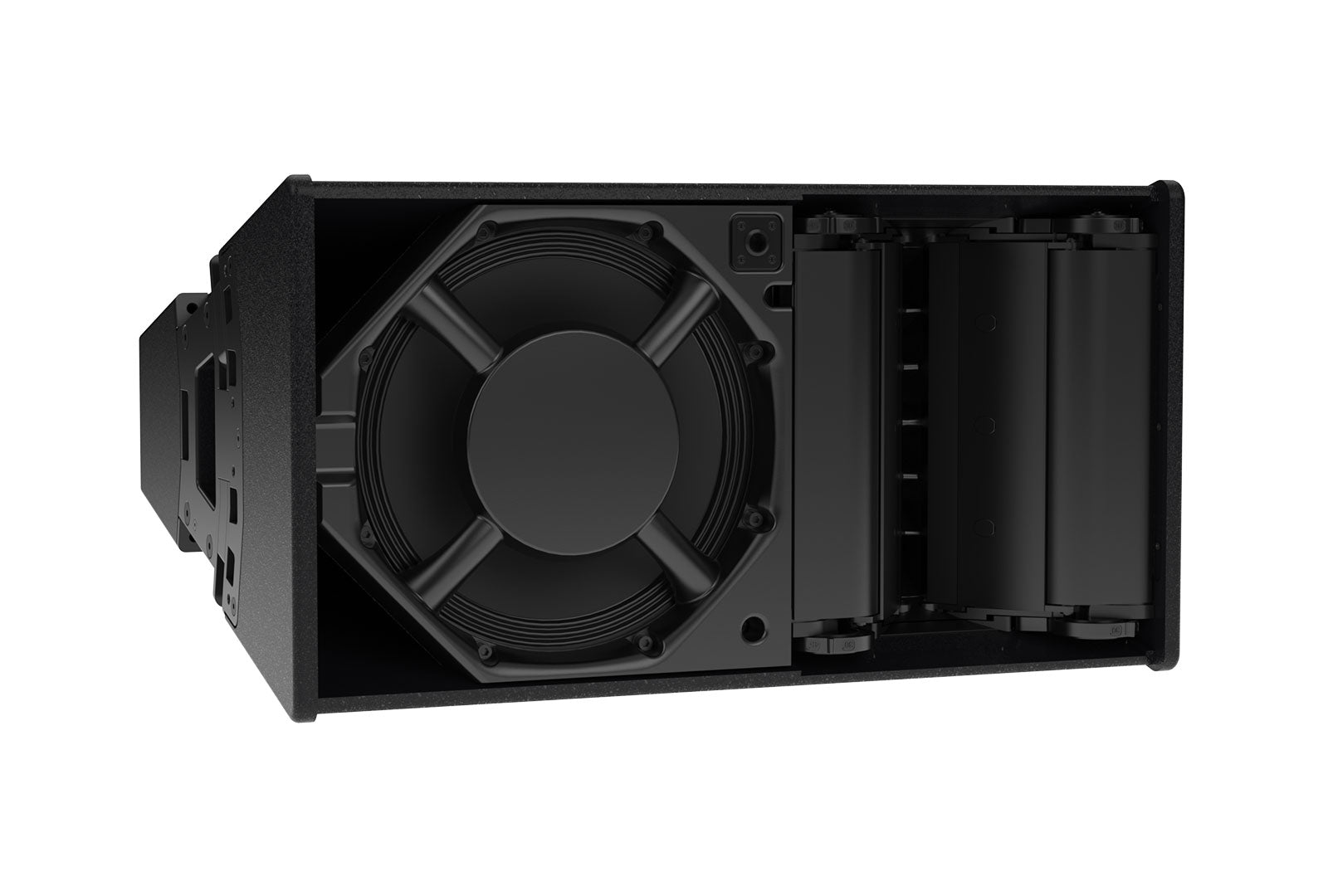

Martin Torus passive fixed angle array cabinet

Martin Torus passive fixed angle array cabinet

Shipping calculated at checkout.
$7,990.00
$7,525.34
Save 5%
In stock. Shipped within 1-3 days.
  • check Trusted New Zealand audio supplier
  • check Fast nationwide shipping
  • check Expert advice & installation support available

100% Secure Checkout

Guaranteed Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

DESCRIPTION

−

A 12-inch passive two-way constant-curvature array cabinet featuring a fixed 30-degree vertical dispersion pattern and a variable horizontal coverage of 90°, 60°, or asymmetric 75° via the rear-mounted Dynamic Horn Flare adjustment. Engineered for medium-scale touring and install applications, it can be deployed as a self-contained point-source loudspeaker or combined in vertical and horizontal constant-curvature arrays of up to six cabinets.

The low-frequency section employs a 12-inch neodymium driver with a 3-inch voice coil, paired with three 1-inch exit compression drivers on HT Polymer dome diaphragms for the high-frequency section. A passive crossover at 1,500 Hz delivers a full-range, coherent response from 65 Hz to 18 kHz. Two rear NL4 connectors with a rear-panel wiring switch (pins 1+/1– or 2+/2–) simplify multi-cabinet cabling. The durable plywood enclosure in hardwearing textured PU paint includes pocket handles and pole-mounting fixings.

  • LF: 12" neodymium driver, 3" voice coil; HF: 3 × 1" exit compression drivers
  • Sensitivity: 99 dB (2.83 V / 1 m); maximum SPL 126 dB continuous / 132 dB peak
  • Power handling: 400 W AES / 1,600 W peak; impedance 8 Ω
  • Frequency response: 65 Hz – 18 kHz ±3 dB; passive crossover at 1,500 Hz
  • Variable horizontal coverage 90°/60°/75° asymmetric; fixed 30° vertical; dimensions 650 × 350 × 442 mm; weight 26 kg

Well suited to touring productions, performing arts centres, houses of worship, corporate AV, and fixed installation environments requiring a scalable, pattern-controlled array solution.
