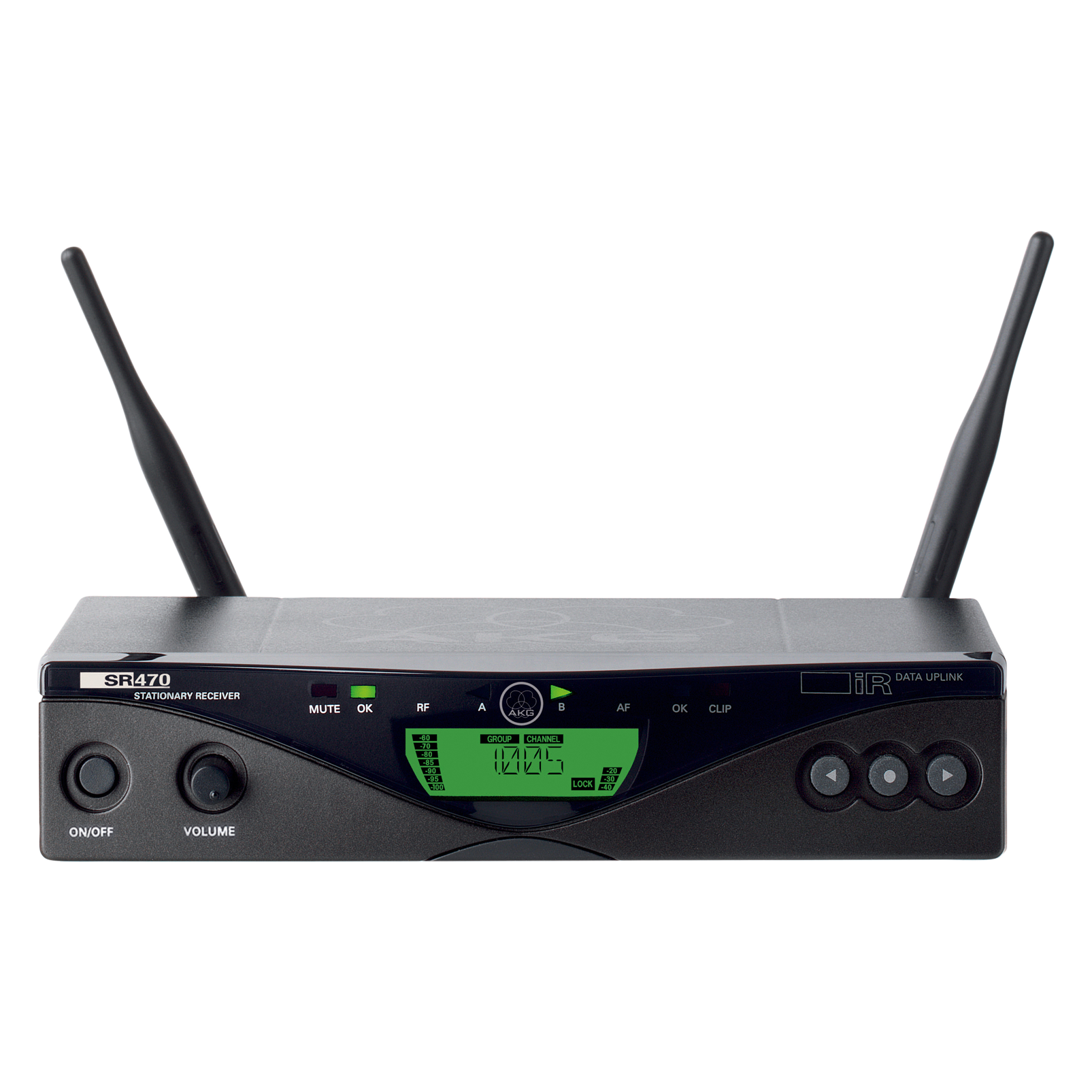

AKG SR470-BD1 UHF Diversity Wireless Receiver Band 1
- check Trusted New Zealand audio supplier
- check Fast nationwide shipping
- check Expert advice & installation support available
100% Secure Checkout
Guaranteed Secure
DESCRIPTION
The AKG SR470-BD1 is a half-rack analogue UHF receiver with microcontroller-controlled space diversity, intended for engineers and integrators who need dependable single-channel wireless for speech and vocals without the overhead of a networked system. Band 1 covers a 30.5 MHz switching bandwidth, giving room to find clear frequencies in busy RF environments.
Set-up is handled by the receiver itself: an environment scan identifies usable frequencies, auto setup transfers the chosen frequency to the transmitter, and rehearsal mode logs dropouts and audio peaks during a soundcheck so problems can be traced before a performance. The metal housing takes the supplied RMU4000 rack-mount kit for single or paired installation, and two 50-ohm BNC antenna inputs allow remote or distributed aerials where the rack sits away from the stage.
- Super-heterodyne receiver with true space-diversity reception and 6 dBuV (-100 dBm) RF sensitivity
- Audio bandwidth 35 Hz - 20 kHz, THD below 0.3 % at 1 kHz, signal-to-noise 120 dB(A)
- Balanced XLR output switchable between -30 dBm and 0 dBm, plus unbalanced 1/4-inch TS jack
- Maximum output level +9 dBu for feeding professional mixing consoles directly
- 200 x 44 x 190 mm, 972 g, powered from 12 V / 500 mA DC
Well suited to houses of worship, education, corporate AV, theatre and hospitality installations where a compact, self-configuring wireless channel is required.
