LEA Power Amp 4 Channel x 120 watt @ 4Ohm, 8Ohm, 70V and 100V

LEA Power Amp 4 Channel x 120 watt @ 4Ohm, 8Ohm, 70V and 100V

Shipping calculated at checkout.
$2,890.00
In stock. Shipped within 1-3 days.
  • check Trusted New Zealand audio supplier
  • check Fast nationwide shipping
  • check Expert advice & installation support available

100% Secure Checkout

Guaranteed Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Questions about this product?
021 435 725 Email us

Talk to an Auckland-based specialist — we sell, install and hire this gear, so we can tell you how it performs in a real room. Prefer a form? Send us a message.

DESCRIPTION

−

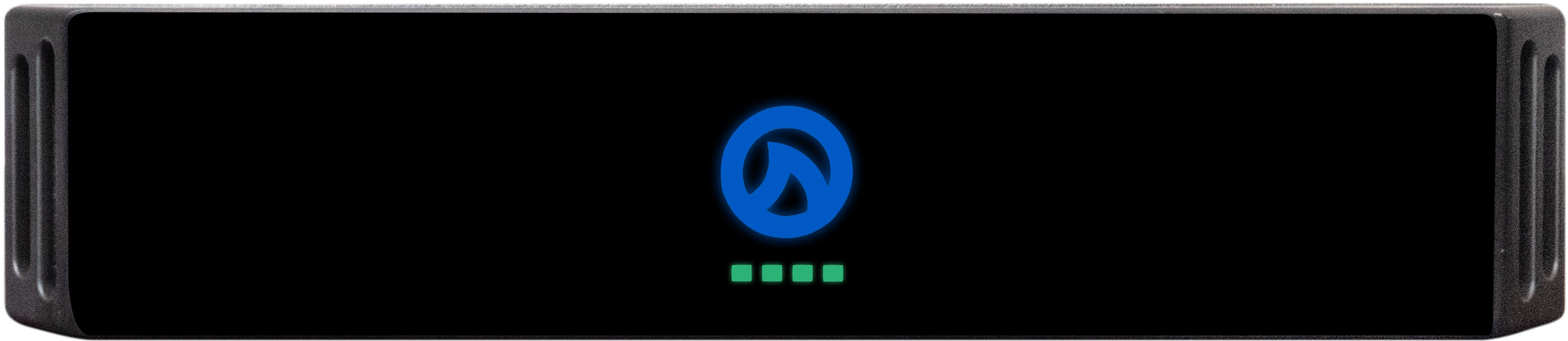

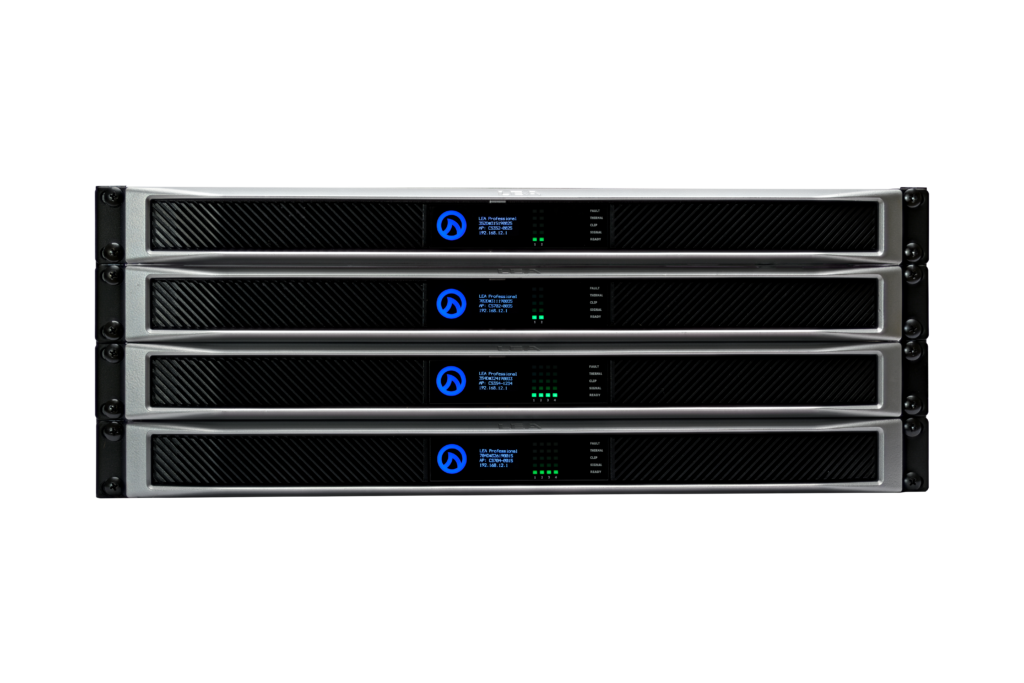

The LEA Professional Connect Series CS124 is a four-channel, Class-D smart amplifier delivering 120 watts per channel across 4Ω, 8Ω, 70V and 100V loads — all selectable on a per-channel basis. Housed in a compact half-rack, 1U chassis, it provides the power density and flexible impedance matching demanded by modern fixed-installation audio systems without consuming valuable rack space.

At the heart of the CS124 sits an Analog Devices Sigma 96 kHz DSP processor with a 32-bit core, giving integrators access to 48 dB/octave IIR crossover filters, eight bands of parametric EQ per channel, user-configurable speaker limiters, and up to 100 ms of output delay per channel. The amplifier connects to networks via built-in Wi-Fi (access-point & client modes) or 100 Mb/s Fast Ethernet, enabling management through LEA's browser-based WebUI, the LEA Cloud platform, or third-party control systems via open APIs.

  • 4× 120 W per channel @ 4Ω, 8Ω, 70 V & 100 V (selectable per channel)
  • THD+N: 0.1% (20 Hz – 20 kHz)
  • Frequency response: 20 Hz – 20 kHz, ±0.5 dB
  • S/N ratio: 102 dB (20 Hz – 20 kHz, referenced to 8Ω)
  • Balanced analogue inputs with selectable sensitivity: 26 dB, 34 dB or mic level
  • 96 kHz DSP: 48 dB/oct IIR filters, 8-band PEQ, 100 ms delay per channel
  • Wi-Fi (AP & client) + 100 Mb/s Ethernet; LEA Cloud, WebUI & open API control
  • Dimensions: 11.82″ × 8.58″ × 1.71″ (300 × 218 × 43 mm) | Weight: 7 lb / 4.1 kg

The CS124 is the ideal choice for distributed audio in houses of worship, corporate AV, hospitality venues, retail environments and educational facilities where reliable networked amplification, versatile impedance options and intelligent DSP control are essential.
