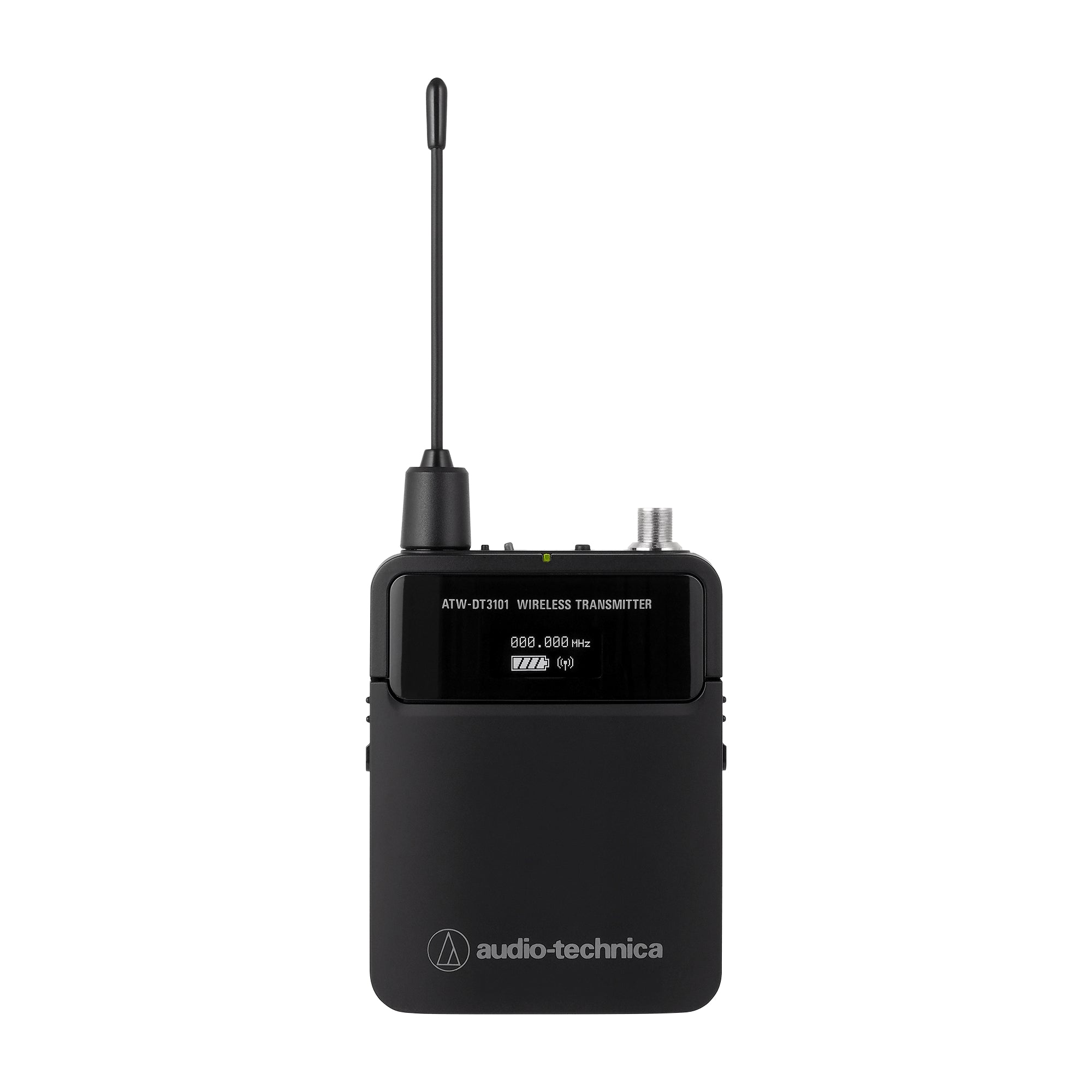

ATWDT3101 Wireless Mic UHF DANTE Bodypack Transmitter

The ATW-DT3101 is a UHF digital bodypack transmitter designed for use with the ATW-DR3120DAN dual-channel DANTE receiver, delivering broadcast-quality wireless audio across demanding professional environments. Utilising Audio-Technica's proprietary digital codec, it achieves a remarkably low transmission latency of just 2.5 ms — critical for in-ear monitor users and video production workflows where lip-sync accuracy is non-negotiable.

Operating across a wide 60 MHz UHF tuning bandwidth with π/4-shift DQPSK modulation, the ATW-DT3101 supports up to 22 simultaneous channels within a single 8 MHz television channel, making it well suited to large-scale multi-channel deployments. AES256 encryption secures the RF link end-to-end, while the four-pin locking connector accepts a full range of Audio-Technica lavalier and headset microphones. The transmitter is powered by two standard AA batteries, with NiMH rechargeable cells (2500 mAh) delivering up to nine hours of runtime at high output.

• UHF operating range: 470–666 MHz (60 MHz tuning bandwidth), frequency bands DE2E / EE1E / FF1E
• RF output power: High 20 mW / Mid 10 mW / Low 2 mW (selectable)
• Transmission latency: 2.5 ms
• Battery life: up to 9 hours (2500 mAh NiMH) / approx. 6 hours (alkaline AA)
• Input connector: four-pin locking (Pin 1: GND, Pin 2: instrument input, Pin 3: mic input, Pin 4: DC bias +5 V)
• High-pass filter: 80 Hz, 120 Hz, or 160 Hz at 12 dB/octave
• Gain adjustment: −10 to +20 dB in 2 dB increments

An excellent choice for houses of worship, corporate AV, broadcast, and theatrical productions requiring secure, low-latency UHF wireless audio integrated into a Dante network infrastructure.
