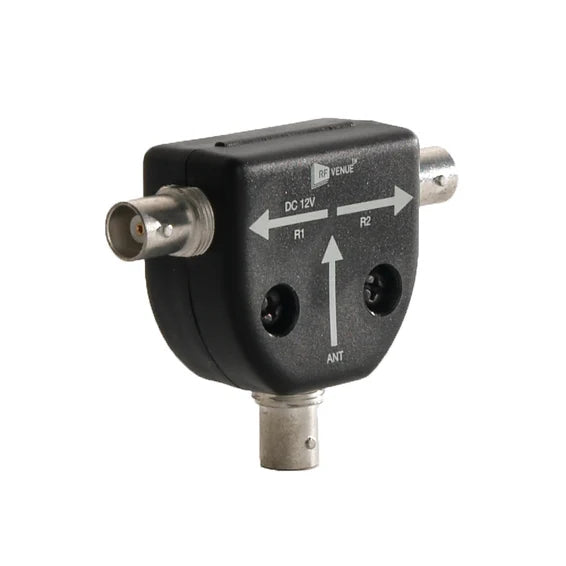

RF Venue RF Splitter

RF Venue RF Splitter

Shipping calculated at checkout.
$290.00
$276.16
Save 4%
In stock. Shipped within 1-3 days.
  • check Trusted New Zealand audio supplier
  • check Fast nationwide shipping
  • check Expert advice & installation support available

100% Secure Checkout

Guaranteed Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

DESCRIPTION

−

A compact passive RF device that functions as both a splitter and a combiner, enabling flexible antenna distribution in wireless microphone and IEM systems. In split mode, one remote antenna feeds two receivers; in combine mode, two paddle antennas merge into a single feed, or a 4- or 8-channel IEM combiner connects to one circularly polarised antenna.

Constructed with an all-passive design requiring no power supply, the unit passes 12 V DC over coax on the R1 port to power active antennas and distribution equipment further down the signal chain. Three BNC female connectors make integration with existing rack infrastructure straightforward.

  • Frequency range: 10–1,000 MHz
  • Insertion loss: 2 dB
  • Port-to-port isolation: 20 dB
  • Impedance: 50 Ω; VSWR: 1.2
  • 12 V DC pass-through on R1 port; three BNC female connectors

Ideal for houses of worship, corporate AV, broadcast & theatre applications where a simple, low-loss passive split or combine is needed without adding rack equipment.
